Fibershot Mini OTDR Series

With its lightweight design and user-friendly dimension, Fibershot Smart series OTDR is perfect for the outside plant environment and can be easily operated with one hand. Fibershot Smart series OTDR ensures accurate and complete fiber evaluation while the testing requires only one key to start, allowing anyone to proceed error-free testing. Its ease of use, low price, high resolution and compact size make it be a qualified tester in installation, operation, and maintenance of optical networks, and also save you a lot of money and time.

Ideal OTDR for short fiber application:

It is difficult to find a cost-effective OTDR to test short fibers. Normal fault locators lack resolution in short spans, while usual OTDRs are too large, expensive and complex. The Fibershot Smart Series OTDR addresses this need by providing all the features and performance needed to install and service short fibers in compact and mini-handheld testers. Fibershot Smart Series OTDR represents unparalleled value and ease of use but does not compromise on performance. Buy OTDR and experience the quality and support of our team. BEST OPTICAL TIME DOMAIN REFLECTOMETER (OTDR) at this price.

Like us at our Facebook Page Fibershot Smart Series OTDR

Humanized Test Interface
Fibershot Smart series OTDR could display Splice loss, Connector loss, Fiber attenuation, Reflection of points, Link optical return loss and distance to fiber events etc. With test information in a smart way, the user could get detailed information immediately.

Quick fit in short time
Simplified display style and structured menus help effectively in reducing the time of the study.

Be smart with HD touchscreen
The 5-inch true color high-resolution touch screen is perfect for viewing OTDR testing results. It provides excellent readability both indoors and outdoors.

Touch and Test
The touchscreen offers a smart way to operate OTDR, even you are wearing gloves; you could use the touch pen to set or check testing parameters.

Result transfer
Check test result on PC or PDA through USB; 4GB large internal memory space could store more than 40,000 groups of results.

Link in line

  • Download reference traces and settings from a database
  • Send measurement result via e-mail
  • Ask for remote help


  • Hand-held and portable
  • High cost performance
  • 5-inch HD touch screen
  • Simple interface and one-button testing
  • Long working hours
  • Support multi-languages


  • CATV network testing
  • Access network testing
  • LAN/WAN network testing
  • Metro network testing
  • Lab and Factory testing
  • Real-time troubleshooting


Dimension 195×140.5×46mm / 0.9kg (battery included)
Display 5 Inch TFT-LCD (Touch Screen)
Interface 3xUSB Port (USB A Type x 2, Micro-USB x1)
Battery 7.4V/3300 mAh Lithium Battery (with Air Traffic Certification)
Continuously Test : 6 Hours (Back light off)
Charging Time : 3.5 Hours
Data Storage 40,000 results
Environmental Conditions Operating Temperature and Humidity : -10°C~+50°C, < 95% (non-condensation)
Storage Temperature and Humidity : -20°C~+70°C, < 95% (non-condensation)

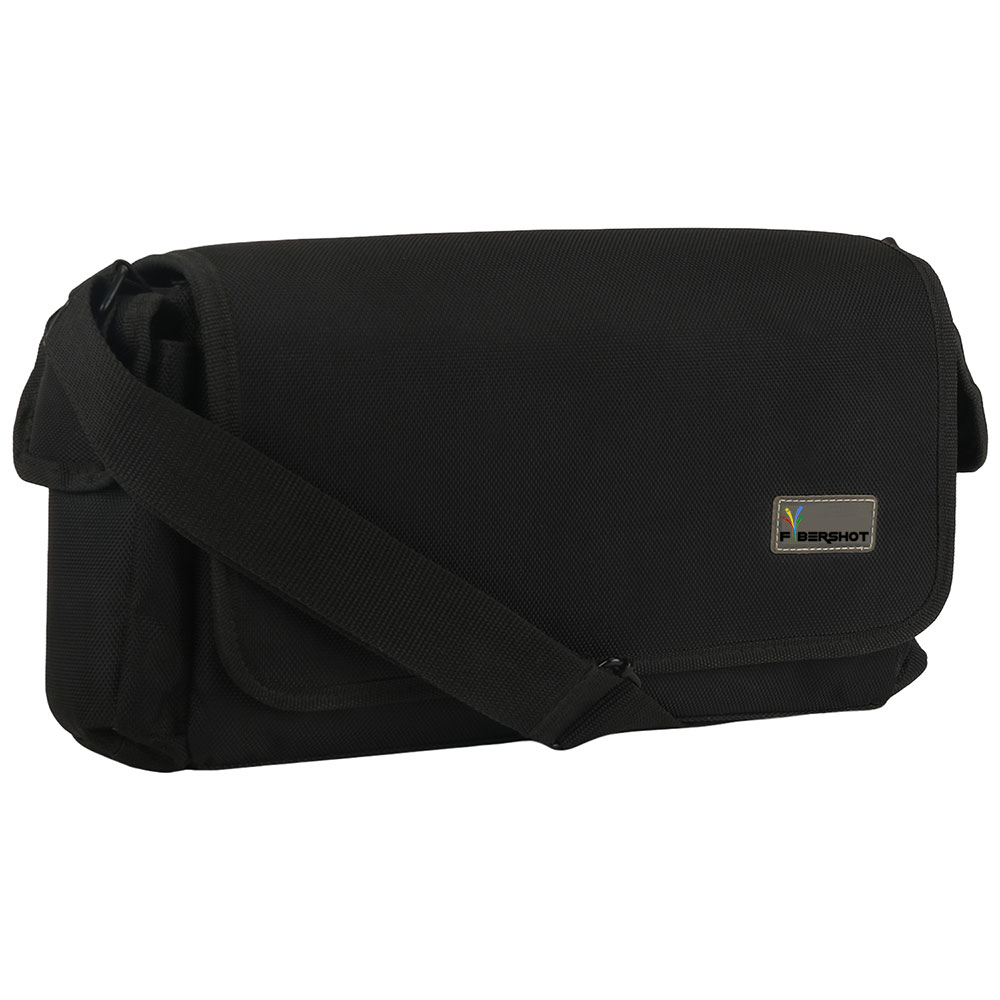

 Accessories Main Unit, 12V Power Adaptor, Lithium Battery, FC Adapter, USB Cord, User Guide, CD Disk, Carrying Case, Wrist Belt

Test Parameters

Pulse Width  3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs (20μs only for B-35/33)
 Testing Distance  100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km
 Sampling Resolution  Minimum 4cm
 Sampling Point  Maximum 128,000 points
 Linearity  ≤0.04dB/dB
 Scale Indication X axis: 4~70m/div, Y axis: 0.09~5dB/div
 Loss Threshold  0.01dB
 Loss Resolution  0.001dB
 Distance Resolution  0.01m
 Distance Accuracy  ±(1m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty)
 Refractivity Setting 1.2000~1.5999, 0.0001 step
Power Supply AC DC adopter input 100 to 250 volt ac, 50-60 Hz
VFL Module (Optional)
Wavelength 650nm
Power 10mw, CLASSIII B
Range 12km
Connector FC/UPC
Launching Mode CW/2Hz
OPM Module (Optional)
Wavelength Range 800~1700nm
Calibrated Wavelength 850/1300/1310/1490/1550/1625/1650nm
Test Range -60~+5dBm
Resolution 0.01dB
Accuracy ±0.35dB±1nW
Modulation Identification 270/1k/2kHz,Pinput≥-40dBm
Connector FC/UPC


Type Testing Wavelength Dynamic Range Event/Attenuation dead-zone
A-26/24 1310/1550nm 26/24dB 1/4m
B-35/33 1310/1550nm 35/33dB 1/4m
