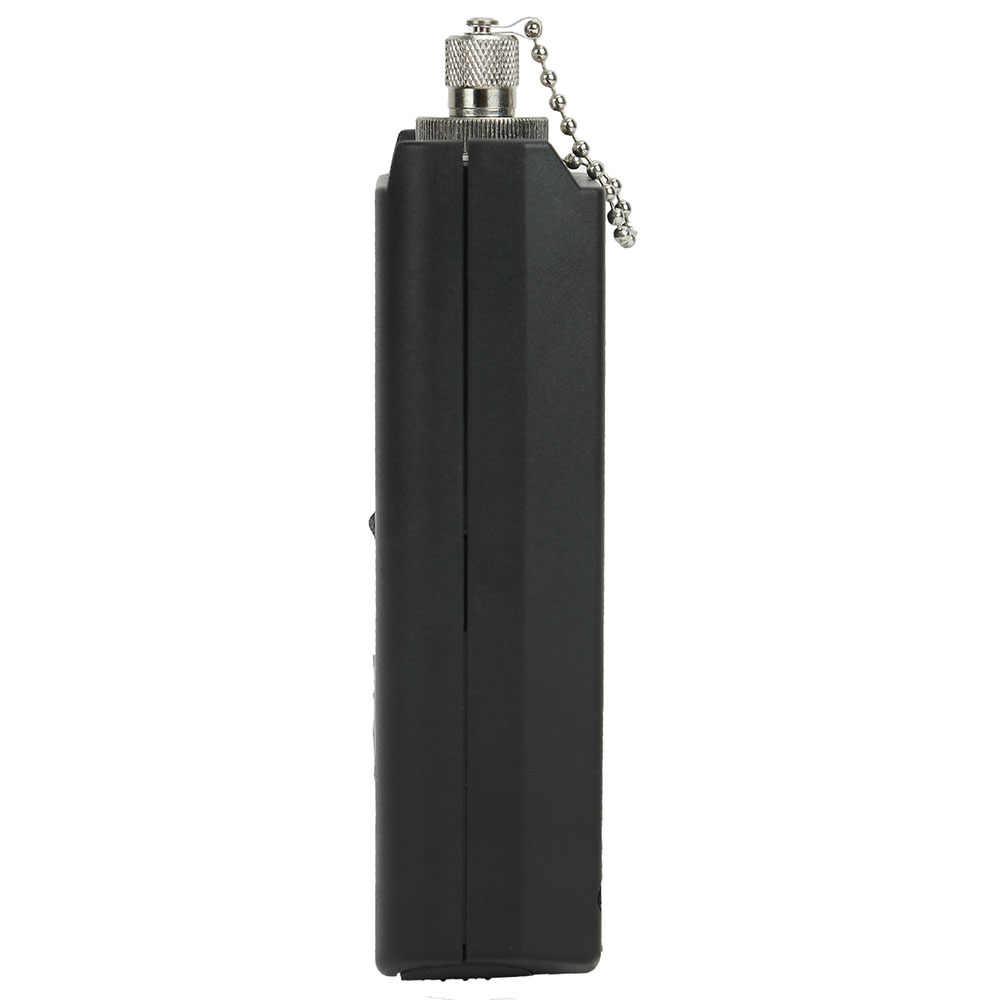

Fibershot Handheld Optical Power Meter
Fibershot Handheld Optical Power Meter is newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with the Fibershot handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers. Compared with usual power meters, the Fibershot Power Meter has more great functions/features of automatic wavelength identification and switching and intelligent backlight control. Also, the Fibershot Power Meter features good appearance, good touch feeling, and considerate humanity design. Buy optical power meter by Fibershot for the best experience.
Automatic Wavelength Identification Significantly Increases Efficiency
Test Results Storage, Transfer and Post Processing with Test Results Management software
The Fibershot AWI File Management system allows technicians to organize test results into multiple files and transfer stored results via USB to a PC for analyzing, generating reports, and printing.
The supplied powerful PC Analysis & Reporting Tool (Test Results Management software) allows users to apply industry standards-based rules to test results and create comprehensive certification reports. Users can generate network Pass/Fail results demonstrating compliance with industry standards and illustrate headroom. The Software is a Windows® compatible software. buy optical power meter at a reasonable cost.
Features
- Wave ID—Automatic Wavelength Identification and switching (when used with KLS-25i handheld light source)
- Frequency ID/Tone detection—Automatic frequency identification
- Data storage function, up to 1000 test records
- USB communication port for saved testing records download & Battery Charging
- PC Analysis & Reporting Tool (Test Results Management software) allows users to create certification reports
Specifications
Wavelength | 800 ~1700 nm |
Detector | InGaAs |
Measurement Range | -70~+3 dBm & -50~+20 dBm |
Uncertainty | ±5% (-10 dBm,20±3℃) |
Calibrated Wavelength | 850、980、1300、1310、1490、1550 nm |
Resolution | 0.01 dBm |
Connector | FC or Universal 2.5mm adaptor |
Power Supply | Alkaline Battery(3 AA 1.5V) |
Battery Operating Time | 240 h |
Operating Temperature | -10~+60 ℃ |
Storage Temperature | -25~+70 ℃ |
Relative Humidity | 0~95% (non-condensing) |
Dimension | 82mm(W)×33 mm(D)×175 mm(H) |
Weight | 310 g |
