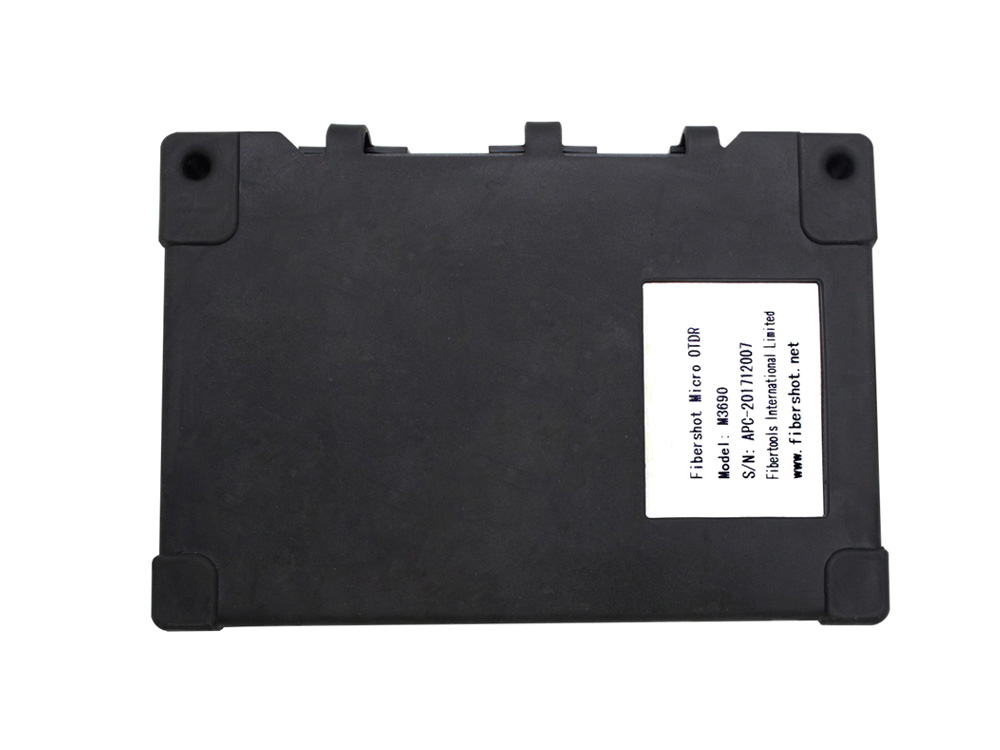

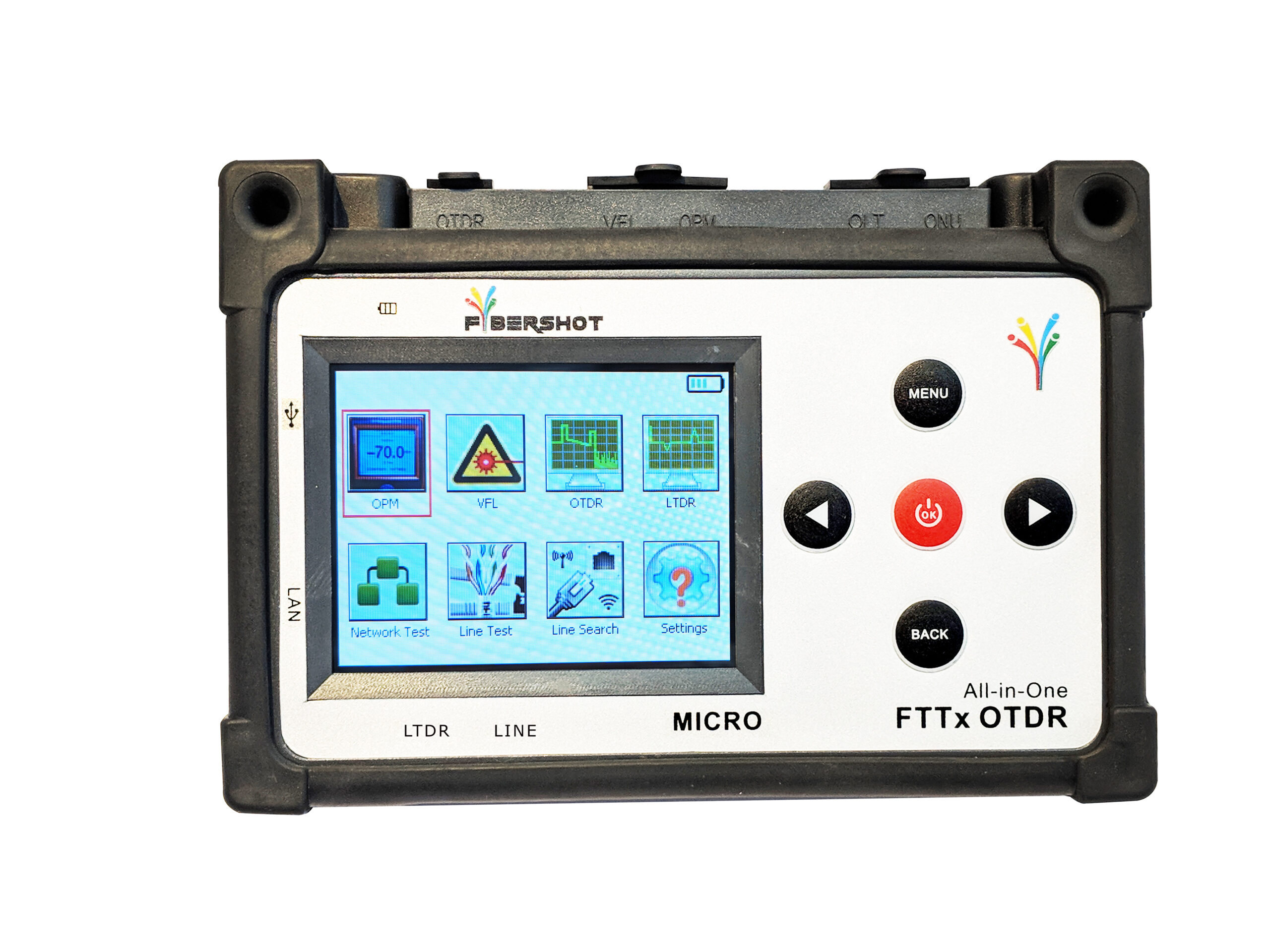

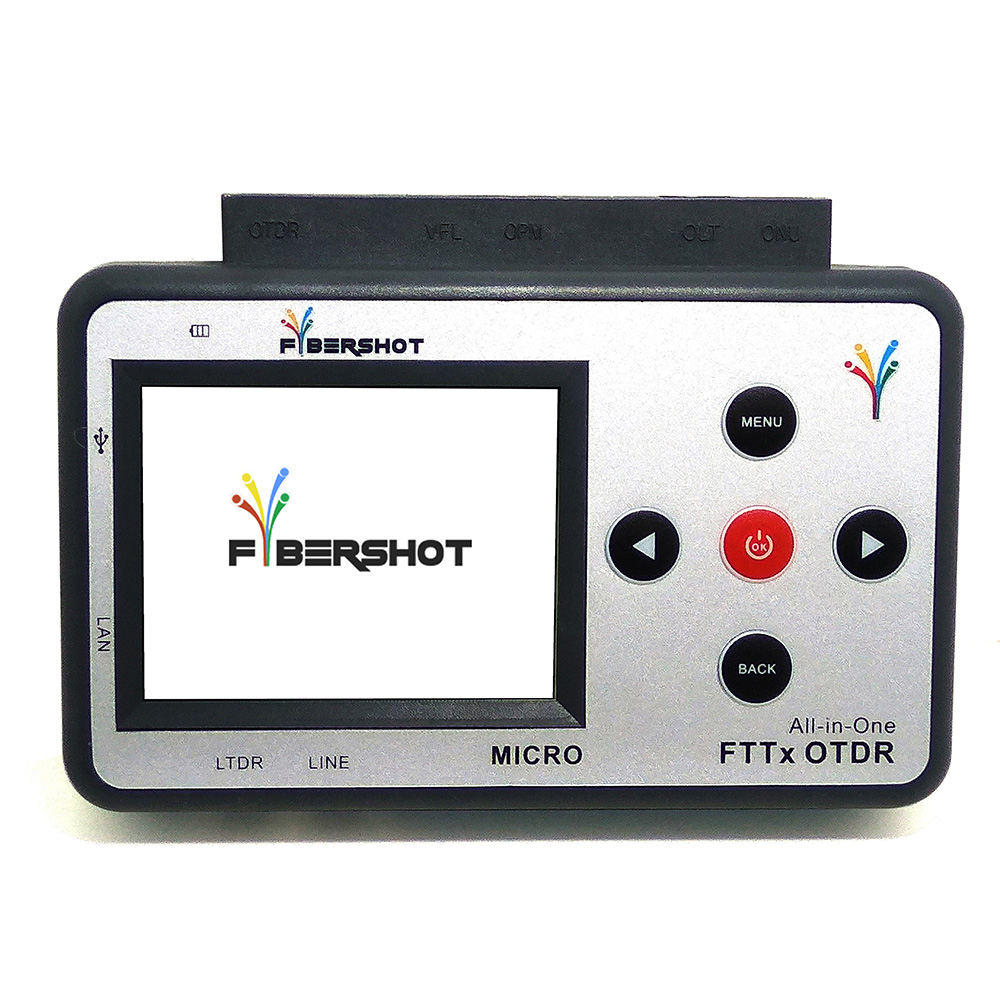

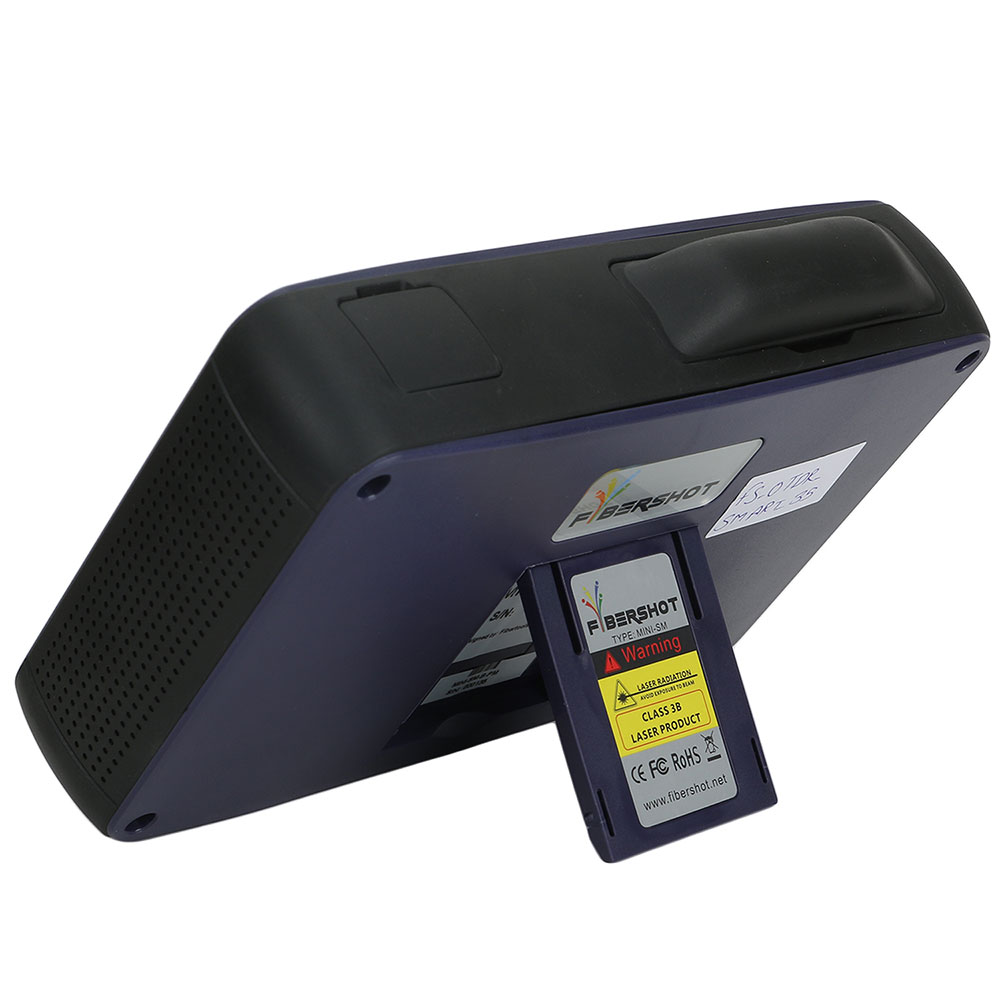

Fibershot Micro series OTDR
The Fibershot micro-OTDR is used for maintenance & installation of cable-TV/broadband/FTTH/network/device maintenance/engineering acceptance. Also in some other applications including power cables, coaxial cable, CCTV securities monitoring, and camera transmission cables and so on.
The Fibershot micro-OTDR can determine and locate the faults and breaks of an optical fiber, network cable and other cables & wires within 5 seconds automatically and very easily.
The Fibershot micro OTDRs greatly improves the efficiency of installation & maintenance while reducing the cost of operation & maintenance, especially suitable for the last 100 meters of optical fiber & network cables on FTTH.
Backed by unparalleled service & support
Best for cable-TV & broadband operators
OTDR: locate the faults and breaks of an optical fiber, measure the length, the transmission loss, and the splice loss, ETC, (30km for attenuation & 50km for breaking point)
LTDR: measure the length, breaking point, short-circuit point, impedance mismatch point and distance between 2 points for network cables, coaxial cables, and other cables & wires.
OPM: measure the average optical power.
PON power meter: measure the PON upstream signal (1310nm & 1277nm) power, to judge whether the on-line ONU exist and ONU upstream pulse is in normal condition.
VFL: used for fiber tracking, fiber routing and continuous checking in the optical network.
Network test: with the integrated Ethernet interface chip. It is used to test various network features including ping and connectivity tests like – PPPOE dial, DHCP test, ARP test, web test and so on. To determine the network faults.
Internet speed test: measure the network download speed and website response/delay speed.
Line test: measure the loop resistance and unbalance resistance of network cables (cat5, caqt5e/ cat6/ cat7), and the loop resistance of the coaxial cable, other cables & wires, to judge the faults condition of all physical connections.
Line search: search the specified cables & wires by sending and receiving signals (audio & ultra-audio).
Features
- OTDR – full function PON OTDR that also allows Live Fiber Testing
- LTDR – To Test Copper CAT-5/6, Cable TV Copper Cables, Electrical Wiring.
- OPM – To Check Optical Signal Level
- PON POWER METER – Check OLT/ONU, Useful for Internet Service Providers.
- VFL – Check Fiber Faults Visually.
- NETWORK TEST – No Need of Laptop to check Internet Speed & LAN Health.
- LINK TEST – Can check Ping to the Router/Gateway.
- LINE TEST – Check Break/Shorting Point in The Copper Cat-5/6 Cables
- LINE SEARCH – Locate cables under the Wall or Find Cable in the Control Room.
Applications
- Excellent service tool for FTTx
- Broadband
- Cable TV Service
Test Parameters
Scale IndicationX axis: 4m~70m/div, Y axis: Minimum 0.09dB/div
| FUNCTIONS | PARAMETERS | |
|
OTDR Built-in filter, for live fiber testing, FTTH 1310/1490/1550nm |
Laser Tube | LD |
| Detecting Diode | APD | |
| Measurement Resolution | 0.6m | |
| Event Dead Zone | 15m | |
| Attenuation Dead Zone | 20m | |
| Test Pulse Width | 10‛30‛100‛300ns‛1‛3us | |
| Dynamic Range | 18 dB | |
| Measurement Length (Event) | 50km | |
| Measurement Length (Attenuation) | 30km | |
|
LTDR |
Measurement Range | 5-200m |
| Pulse Amplitude | 10v | |
| Pulse Width | 10‛30‛100‛300ns‛1‛3us | |
| Measurement Resolution | 0.6m | |
|
Optical Power Meter |
Wavelength Range (nm) | 800-1600 |
| Probe Type | InGaAs | |
| Power Measurement (dBm) | -50 TO +26 DB | |
| Uncertainty | 3% | |
| Display Resolution | 0.1dBm | |
| Fiber Category | Single Mode | |
| Connector | SC/APC | |
|
PON Power Meter |
Wavelength Range (nm) | 1310nm & 1277nm |
| Measurement Range | -40-+6dBm | |
| Insert Loss | Loss than 1dB | |
| Uncertainty | ±1dBm | |
|
Visual Fault Locator |
Operation Wavelength (nm) | 650nm |
| Light Emitting device | FP-LD | |
| Output Power (mw) | 5mw | |
| Modulation | 0Hz,1Hz, 2Hz | |
| Fiber Category | Single Mode | |
| Connector | SC | |
|
Network Test |
Download Speed | 1000M |
| Ping Test | 6 groups or setting | |
| PPPoE Dial | 6 groups or setting | |
| DHCP Detect | Display IP and Gateway | |
| WEB Test | Display WEB interface | |
| Line Test | 4 Groups Loop Resistance | 1-8000 Ω |
| 4 Groups Unbalanced Resistance | 1-1000Ω | |
| Uncertainty | 5% | |
| Line Search | Audio Hunt | 800/1600HZ-10vpp |
| Ultra Audio Hunt | 400KHz moulation800/1600HZ-10vpp | |
|
Others |
Power Supply | Lithium/4000MAH |
| Power Adapter | MicroUSb 5v/1000mA | |
| Single-Phase Maximum Current | ≤ 200mA | |
| Standby Power | ≤ 2uA | |
| Battery Operating Time | ≥ 10H | |
| Auto-off Time (min) | Adjustable | |
| Working Temperature (°C) | -10~+50 | |
| Storage Temperature (°C) | -25~+70 | |
